Hi Dave,
I found some 3" scale rail in Oxnard CA. It is 1 1/2" tall. Perfect height. For testing I will just use wood until I can save up enough for the rail. I was going to use steel bar stock thinking it would be cheaper but the price is about the same as the aluminum rail.

Ok now for a public service announcement. MAKE SURE YOU ARE HOLDING TIGHT TO THE GRINDER WHEN TURNING IT ON!!!!......ooops, almost a Hara Kiri.

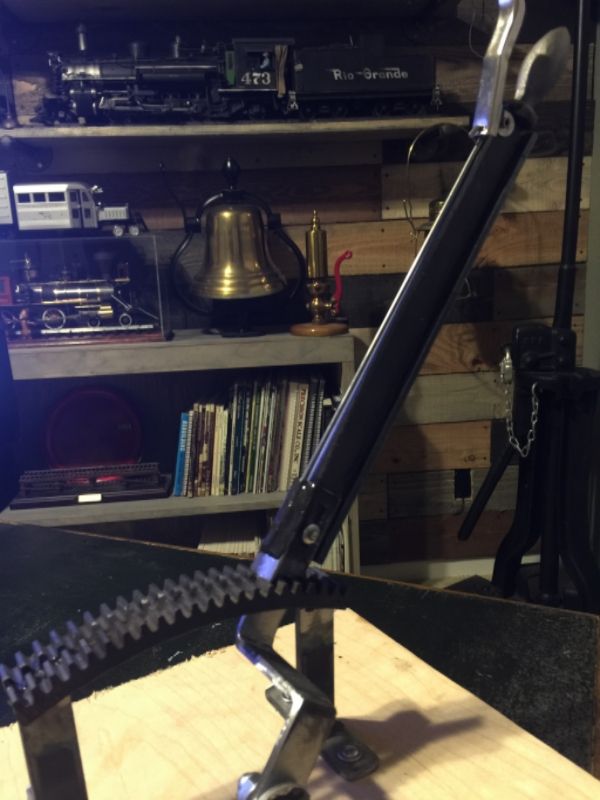

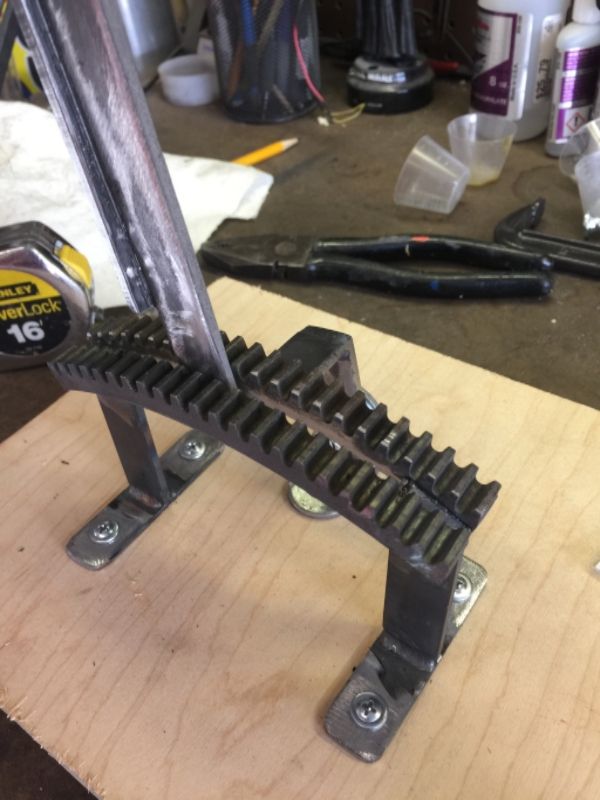

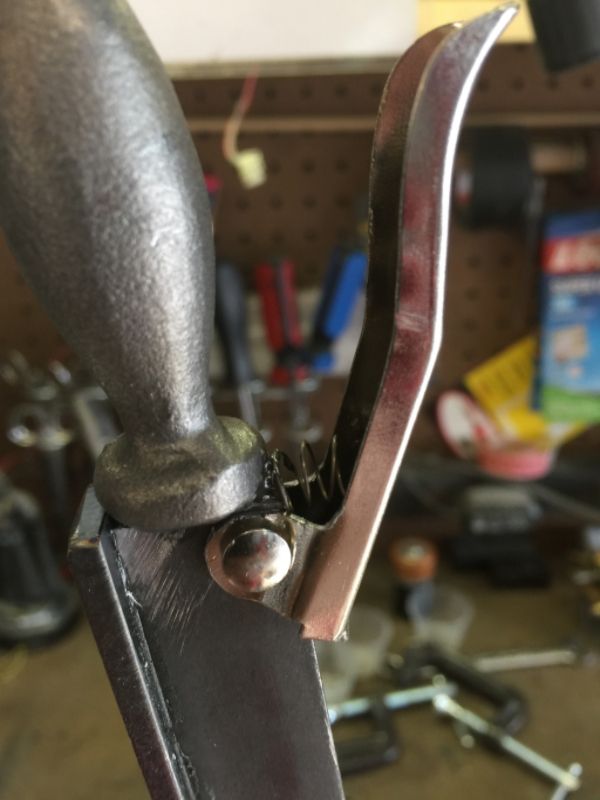

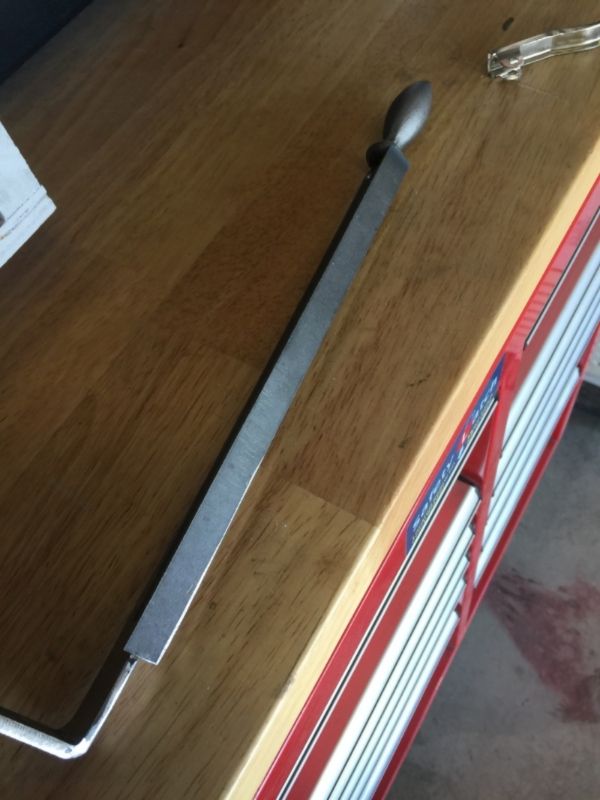

I have pretty much finished the cutting and welding for a bit. Last metal project for the engine will be the johnson bar. Remember the flywheel ring gear earlier? with a little cutting, bending, welding and JB welding I have a johnson bar. I mocked it up on scrap wood. I will be wiring and hiding micro switches for the forward and reverse switches. The knob is form a crank for something. Used one on the throttle also.













Country: | Posts: 338 Go to Top of Page

Frank Palmer
Fireman



Posted - 02/27/2017 :  11:51:52 AM  Show Profile  Visit Frank Palmer's Homepage  Reply with Quote
Mr. Johnson would be proud!


Country: USA | Posts: 3773 Go to Top of Page

Mudhenbill
Engine Wiper



Posted - 02/28/2017 :  5:23:48 PM  Show Profile  Visit Mudhenbill's Homepage  Reply with Quote

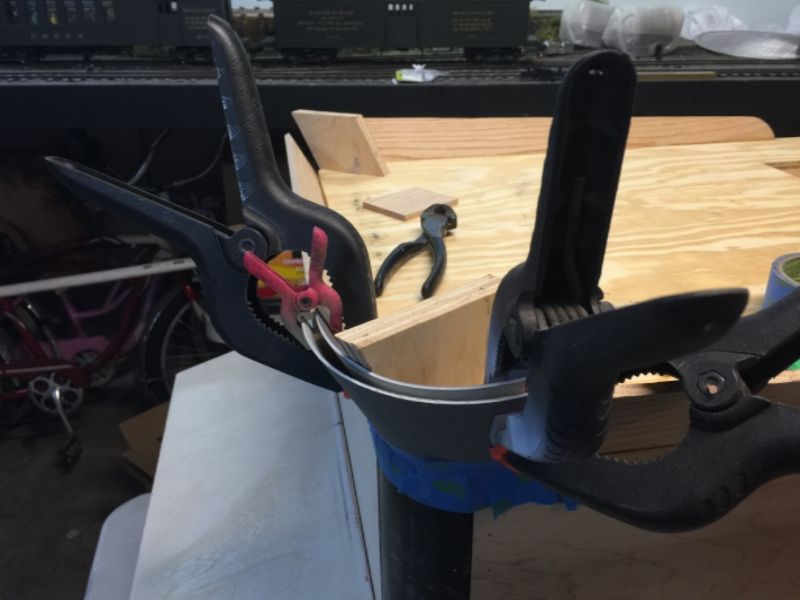

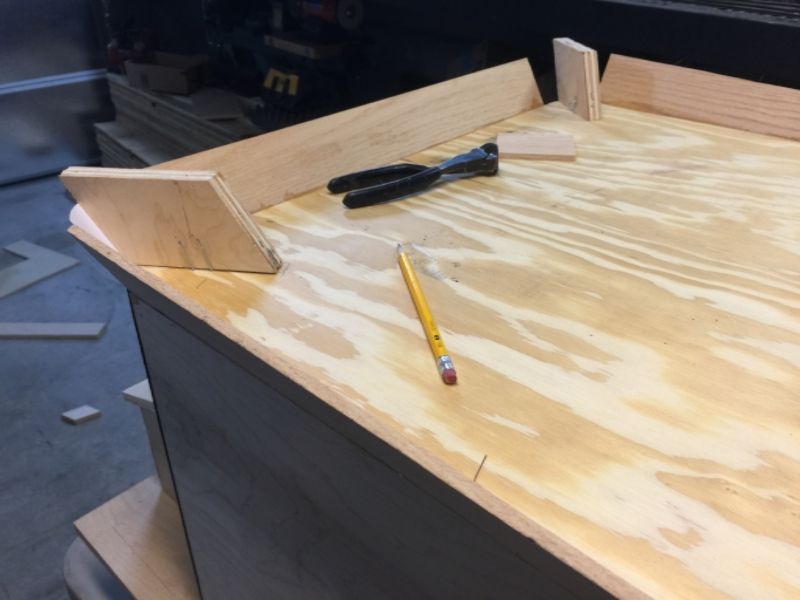

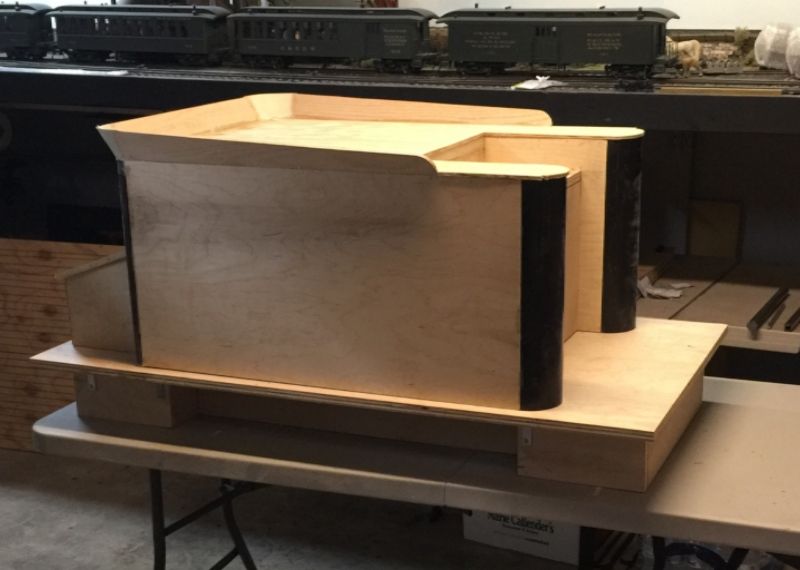

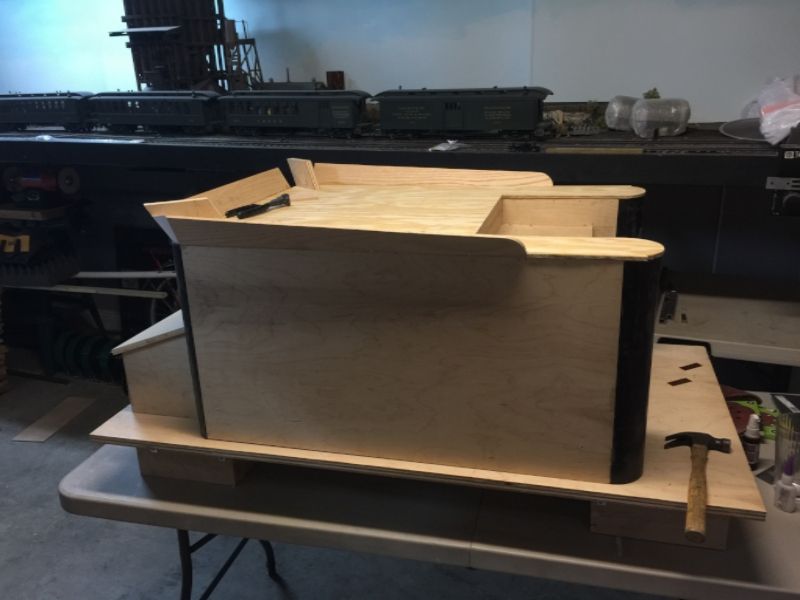

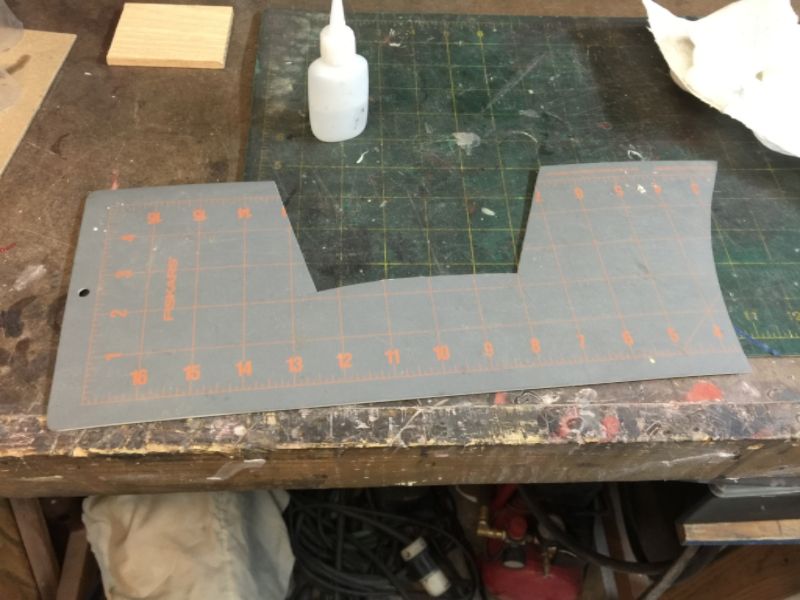

Went out in the garage AKA Bill's Creative lab, to figure out how to do the tender flare. While looking at the tender something was bugging me. I went back to the drawing and realized that I had made the tender 1 inch too tall. You might say, Really? Yes it's one of those things that bug me like crocked pictures. For some reason I have a built in level and size perspective. I measured the picture and didn't take into account the base and subtract it. Well that put a damper on the evening. As I pondered how I was going to take an inch off without screwing up the level and the corners I decided I would use a level as a guide for the saw. It worked great until I got to corners were the old hand saw came out to finish. Problem solved now back to the flare. I decided to use Oak because of its strong qualities. I am going to cover with fiberglass anyway so it didn't matter about the grain. I found some 1/4" oak strips at Lowe's. First I placed a piece of 1/4 ply on the top leaving it a little long on the edges that didn't have the flare. Where the flare was going the board is in a 1/4" I glued and pin nailed (my new favorite tool) the flare at an angle using angled blocks of wood to make sure they were all the same. What to do with the corners. I was thinking of making a pattern with paper then using several layers of plastic. Then it hit me, why not make them out of resin. I found a sewing cutting pad my wife had, she won't know, What do you think?

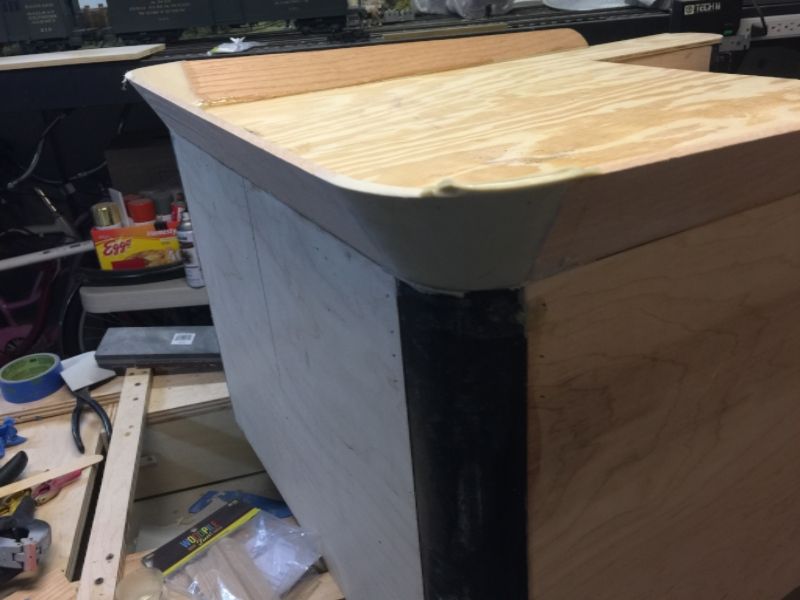

I cut it to wrap around both inner and outer sides of the curve. Mixed up some resin and poured. What the hech, the resin is disappearing. Oh crap forgot to seal it up really good at the bottom. As I watched the resin disappear I could only imagine where it was going. finally it set enough to stop on the bottom so I finished topping it off. Once dry I went looking for the resin. It had puddled in the corner at the bottom attaching the tender to the floor. Man that stuff really sticks to wood when you don't want it. I finally got it free what a mess. On the next one I sealed up really good with hot glue, no problems. Still need to sand them off but pretty good results.













Edited by - Mudhenbill on 02/28/2017 5:37:13 PM

Country: | Posts: 338 Go to Top of Page

MarkF
Engineer

Premium Member


Posted - 02/28/2017 :  10:28:16 PM  Show Profile  Reply with Quote
Pure genius! I think you nailed it. Or should I say 'glued it'? Either way, it looks great.

As for the few boo-boo's, at least we know your human and make mistakes now and then!


Mark

Country: USA | Posts: 13251 Go to Top of Page

sgtbob
Fireman

Premium Member


Posted - 03/01/2017 :  07:08:41 AM  Show Profile  Visit sgtbob's Homepage  Reply with Quote
This was both outstanding and quite disappointing.

Your work is most outstanding as usual.

What was disappointing was that I was expecting you to say something like
"the resin ran out and puddled on the floor and it looks just like an engine part I need".

Cheers,

Bob


http://www.railroad-line.com/forum/topic.asp?TOPIC_ID=30102&whichpage=1
http://www.railroad-line.com/forum/topic.asp?TOPIC_ID=38921
http://www.railroad-line.com/forum/topic.asp?TOPIC_ID=45371
http://www.freewebs.com/santmod/

Edited by - sgtbob on 03/01/2017 07:09:36 AM

Country: USA | Posts: 3011 Go to Top of Page

Michael Hohn
Fireman



Posted - 03/01/2017 :  08:43:59 AM  Show Profile  Visit Michael Hohn's Homepage  Reply with Quote
You seem to have a flair for this sort of thing.

I enjoy watching you come up with solutions.

Mike


_______________________________________________________________________________________________
Nobody living can ever stop me, as I go walking that freedom highway -- Woody Guthrie

Country: USA | Posts: 2426 Go to Top of Page

Frank Palmer
Fireman



Posted - 03/01/2017 :  09:24:15 AM  Show Profile  Visit Frank Palmer's Homepage  Reply with Quote
Necessity is your mother's invention. Or something like that.
Nice!



Country: USA | Posts: 3773 Go to Top of Page

Mudhenbill
Engine Wiper



Posted - 03/01/2017 :  4:29:46 PM  Show Profile  Visit Mudhenbill's Homepage  Reply with Quote
quote:
Originally posted by sgtbob

This was both outstanding and quite disappointing.
What was disappointing was that I was expecting you to say something like
"the resin ran out and puddled on the floor and it looks just like an engine part I need".



Now that would be funny, LOL. It is still there, who knows if I pull it out what it might be



Country: | Posts: 338 Go to Top of Page

Frank Palmer
Fireman



Posted - 03/01/2017 :  7:15:12 PM  Show Profile  Visit Frank Palmer's Homepage  Reply with Quote
I wanted to get an idea as to where this project is headed so I went back to page 1. In somewhat disbelief I noticed the front and rear locomotive wheels weren't even connected with a side rod.


Country: USA | Posts: 3773 Go to Top of Page

Mudhenbill
Engine Wiper



Posted - 03/02/2017 :  3:42:37 PM  Show Profile  Visit Mudhenbill's Homepage  Reply with Quote
Man Frank can't keep anything from you! Lol. Yes the front wheels just roll along, another weird trate to this loco. However all is not lost. I have rods to put on eventually. We are thinking of displaying at Walt's Barn in Griffith Park Los Angeles this summer. Don't want to stray to far from the real one for the Disney freaks. after that I will make the need changes to make it more believable, weights and rods. They don't even have a water hatch, mine will.

http://www.carolwood.org/barn.html



Country: | Posts: 338 Go to Top of Page

Mudhenbill
Engine Wiper



Posted - 03/13/2017 :  3:05:30 PM  Show Profile  Visit Mudhenbill's Homepage  Reply with Quote

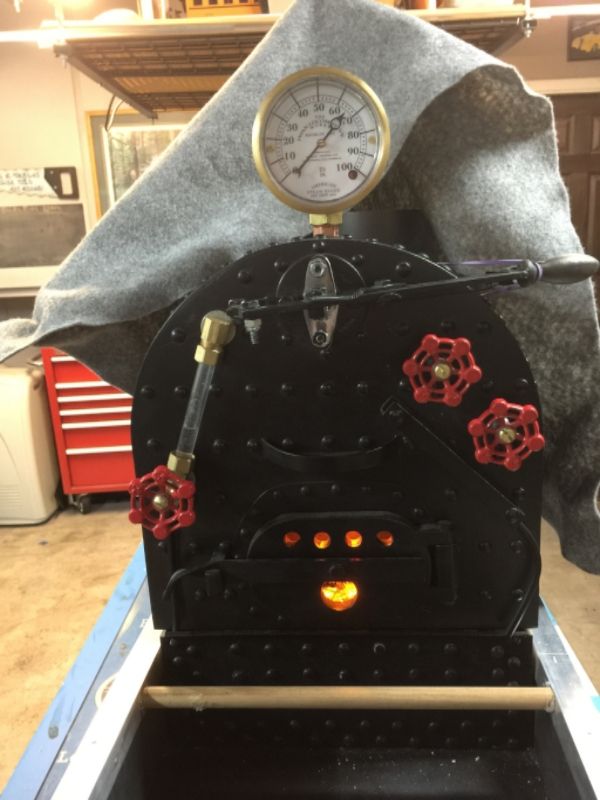

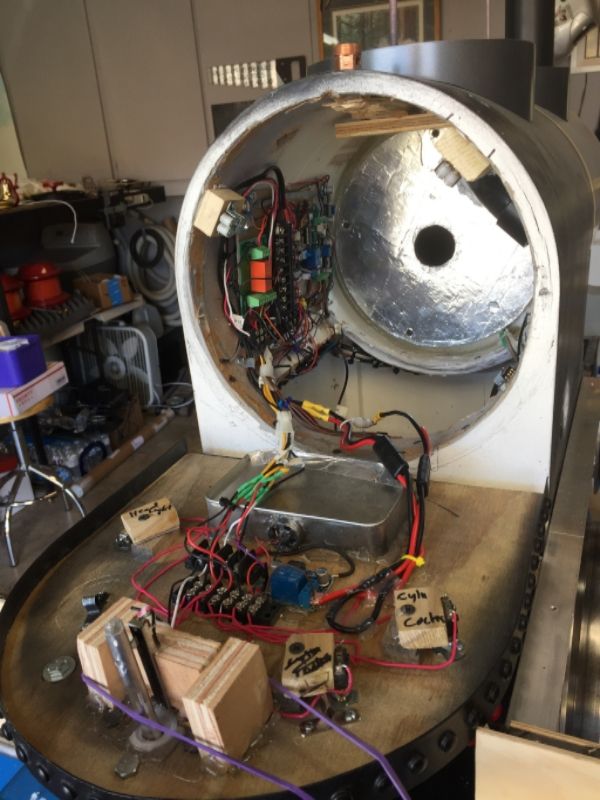

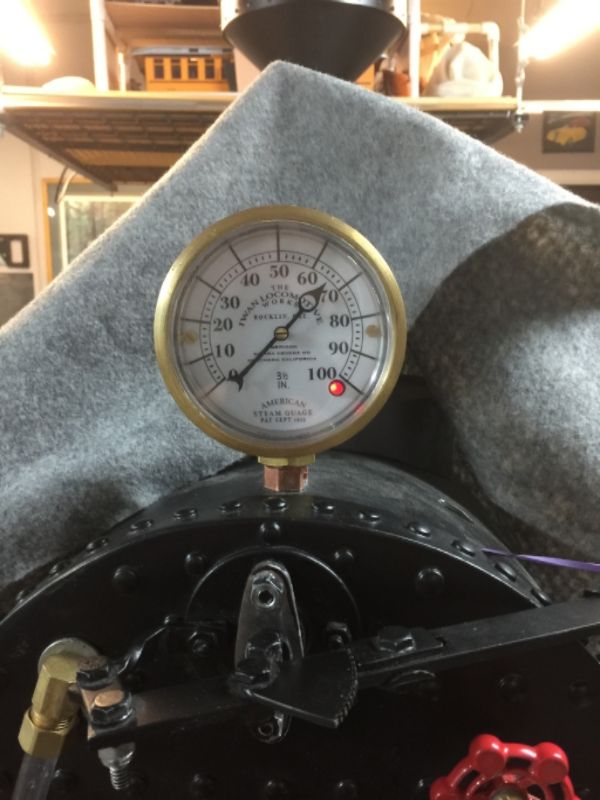

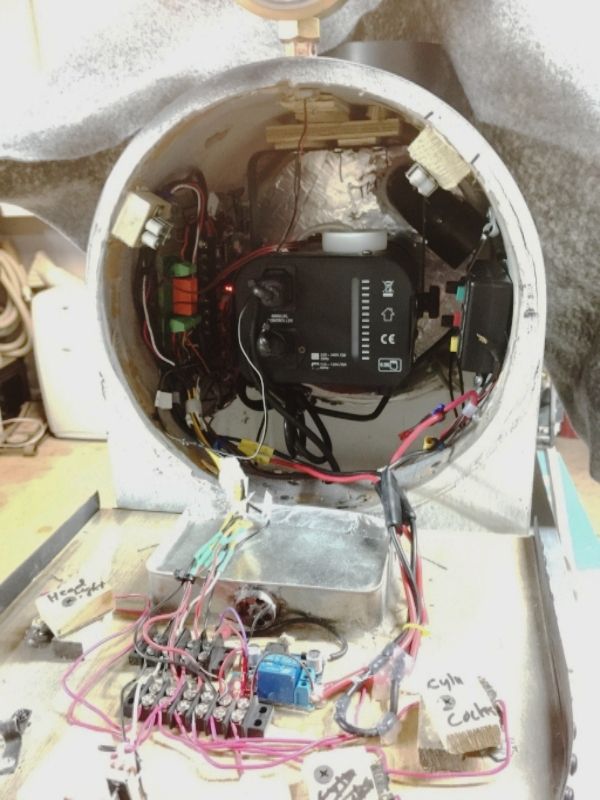

Well not much fun stuff to report this time unless you think of wiring as fun. Finished the locomotive electrical. Sound, wiring, voltage regulators, relays and sensors. And with a little bit of thought and magic, steam cocks that dump steam along with synced sound and a simplified smoke puff out of the stack. It was late at night with garage door closed, couldn't see anything but smoke. I'll post a video once I finished painting the cab and frame and it's all put back together. oh and there is a red blinking light in the gauge that tells me when the smoke fluid is low










Country: | Posts: 338 Go to Top of Page

Frank Palmer
Fireman



Posted - 03/13/2017 :  5:59:32 PM  Show Profile  Visit Frank Palmer's Homepage  Reply with Quote
Yep, looks UL approved to me. All fired up and no place to go!


Country: USA | Posts: 3773 Go to Top of Page

MarkF
Engineer

Premium Member


Posted - 03/14/2017 :  1:44:10 PM  Show Profile  Reply with Quote
Whoa, he's not only a mechanical genius, but an electronics wizard too? And what is that, a real fire in the fire box??? Looks good!

Mark

Country: USA | Posts: 13251 Go to Top of Page

Mudhenbill
Engine Wiper



Posted - 03/22/2017 :  10:34:06 PM  Show Profile  Visit Mudhenbill's Homepage  Reply with Quote

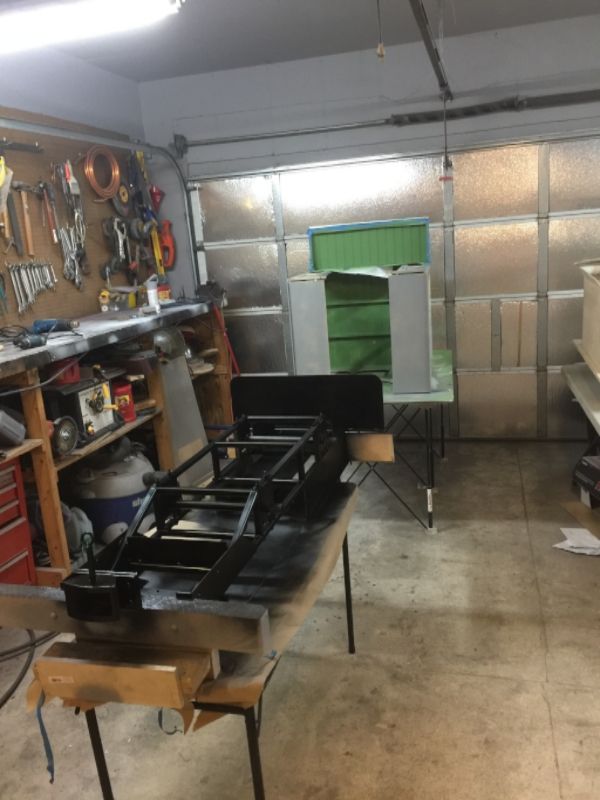

The garage is now a paint shop. The two things I really hate, body work and weight loss.




Country: | Posts: 338 Go to Top of Page

Frank Palmer
Fireman



Posted - 03/23/2017 :  09:11:28 AM  Show Profile  Visit Frank Palmer's Homepage  Reply with Quote
Ohhh, I like that insulated garage door.


Country: USA | Posts: 3773 Go to Top of Page
