Hawx
Section Hand

Posted - 06/07/2017 :  5:05:53 PM  Show Profile  Visit Hawx's Homepage  Reply with Quote
Long time no post, but I am still modeling a litte.

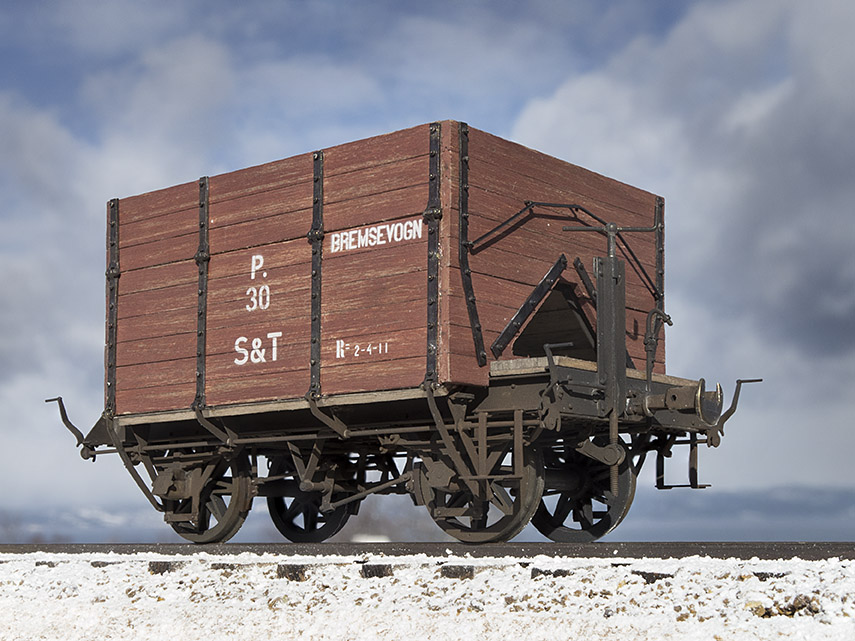

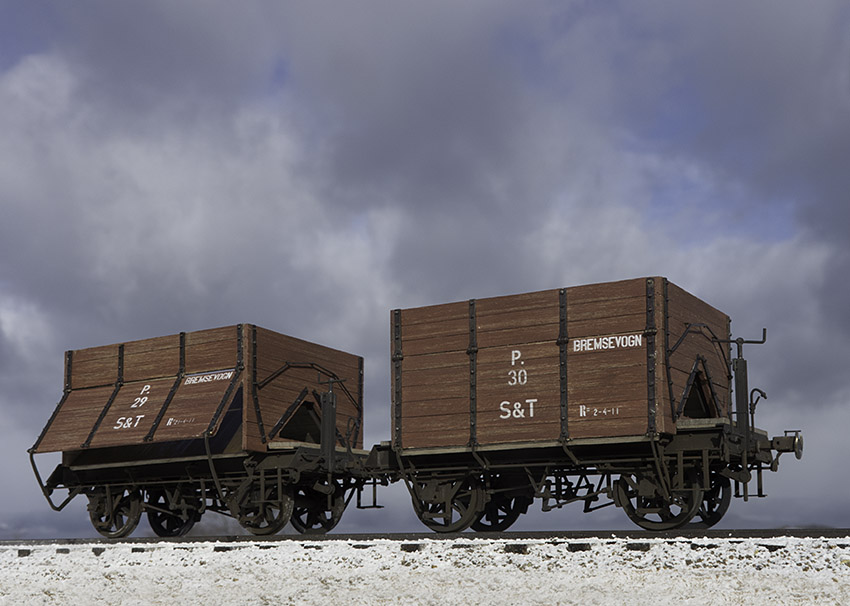

Here is my latest product, a scratch built 0m (22,2mm gauge, 1/45 scale):





Built entirely from wood and metal, the only plastic in the insulation in the wheels.

The wooden hopper is made with working tongue and groove boards:



The t&g were milled into regular Kappler strip wood using a CNC-router:

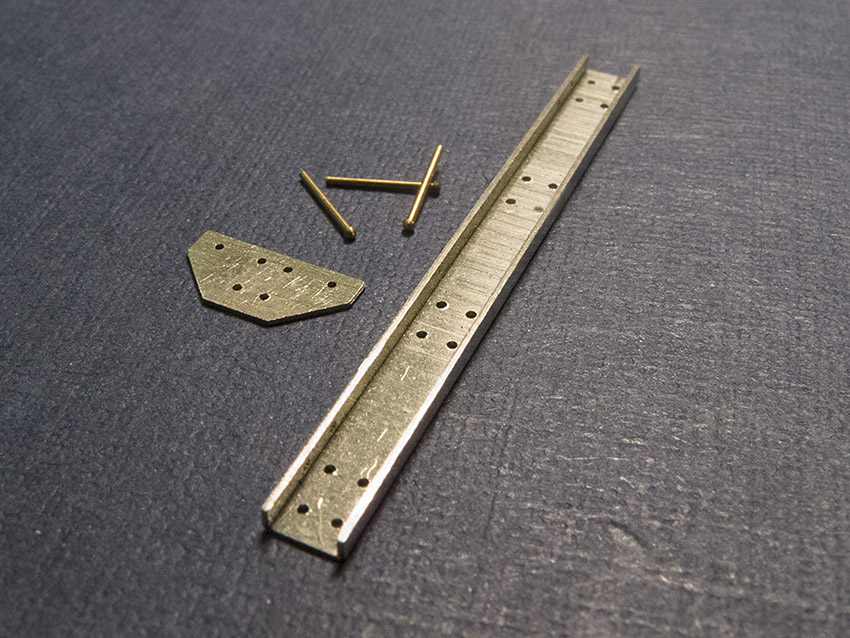

The underframe is made from etched nice silver:

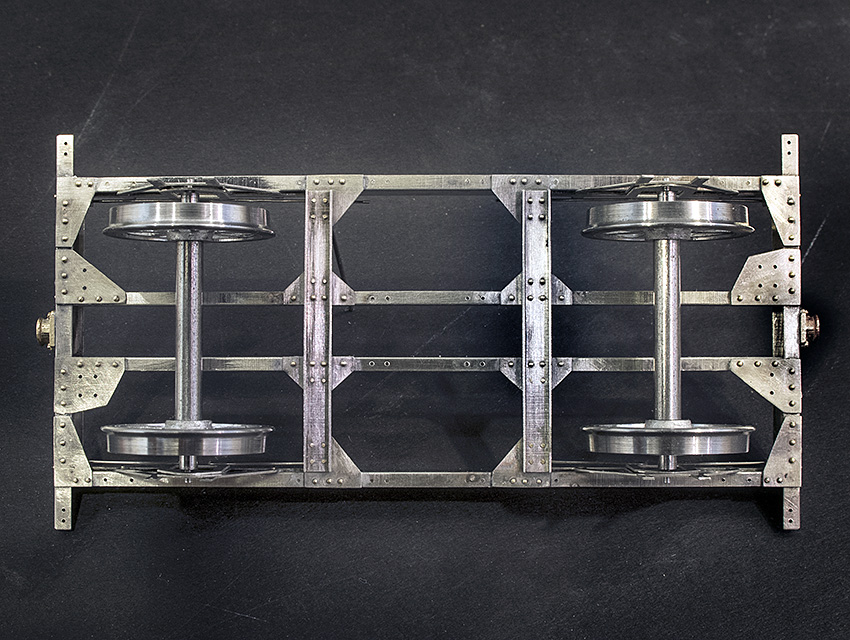

An early construction shot showing the basic layout of the frame:





--
Remembrance of Trains Past

Country: Norway | Posts: 86

David Clark
Fireman



Posted - 06/07/2017 :  5:23:03 PM  Show Profile  Reply with Quote
Holy smokes that's beautiful work! I think you had little people working on it.
Cheers,
Dave



Country: Canada | Posts: 1051 Go to Top of Page

George D
Moderator

Premium Member


Posted - 06/07/2017 :  5:58:03 PM  Show Profile  Reply with Quote
Wow! That's impressive work, Haavard.

George



Country: USA | Posts: 14505 Go to Top of Page

brownbr
Fireman

Premium Member

Posted - 06/07/2017 :  6:45:25 PM  Show Profile  Reply with Quote
Impressive.

Bryan

Country: USA | Posts: 1474 Go to Top of Page

TRAINS1941
Engineer

Premium Member


Posted - 06/07/2017 :  7:12:07 PM  Show Profile  Reply with Quote
Just outstanding!!!!

Jerry

"And in the end, itís not the years in your life that count. It's the life in your years." A. Lincoln

Country: USA | Posts: 10513 Go to Top of Page

quartergauger48
Fireman

Premium Member


Posted - 06/07/2017 :  11:02:17 PM  Show Profile  Reply with Quote
OUTSTANDING CRAFTSMANSHIP. EXCELLENT!!!!



Ted

Country: USA | Posts: 5552 Go to Top of Page

sgtbob
Fireman

Premium Member


Posted - 06/08/2017 :  06:25:44 AM  Show Profile  Visit sgtbob's Homepage  Reply with Quote
Like everyone is saying, OUTSTANDING!!!

Bob


http://www.railroad-line.com/forum/topic.asp?TOPIC_ID=30102&whichpage=1
http://www.railroad-line.com/forum/topic.asp?TOPIC_ID=38921
http://www.railroad-line.com/forum/topic.asp?TOPIC_ID=45371
http://www.freewebs.com/santmod/

Country: USA | Posts: 3433 Go to Top of Page

Guff
Fireman

Premium Member


Posted - 06/08/2017 :  08:42:40 AM  Show Profile  Reply with Quote
Museum quality work...EXCELLENT!!!
The painting and weathering is perfect.
Dave



Country: USA | Posts: 1461 Go to Top of Page

Carl B
Fireman

Premium Member

Posted - 06/08/2017 :  08:45:23 AM  Show Profile  Visit Carl B's Homepage  Reply with Quote
Just WOW!


Country: USA | Posts: 2821 Go to Top of Page

Frank Palmer
Fireman



Posted - 06/08/2017 :  09:22:41 AM  Show Profile  Visit Frank Palmer's Homepage  Reply with Quote
I don't know what to say, just beautiful.


Country: USA | Posts: 4643 Go to Top of Page

Hawx
Section Hand

Posted - 06/08/2017 :  11:45:50 AM  Show Profile  Visit Hawx's Homepage  Reply with Quote
Thanks a lot for all the kind remarks!

But a lot of the praise is due to a few manufacturers and service providers:

-PPD ltd of Scotland (http://www.ppdltd.com) that made all the very fine etchings. Check out the stencils in 0,075 mm steel:

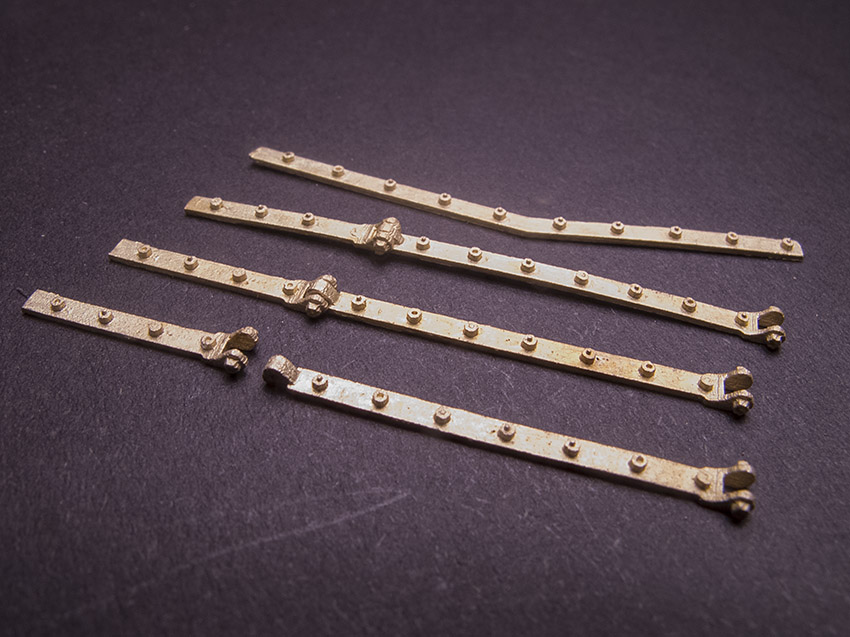

-Prescision Wax in the uk (http://www.precision-wax.com) that 3D printed the wax masters for the brass castings on the wooden hopper



This is just an early test, the final master had a much more rational design, and was printed with an ever higher resolution.

- David Sciatica in the US (david.sciaccasbcglobal.net) that did the brass casting from the wax masters.



- Hassler Profile in Licthenstein (https://www.hassler-profile.li/) that makes the excellent turned brass rivets I use for the structural joints in the cars.



-Erik Olsen of Denmark who made the excellent fine scale wheel sets. Unfortunately, Erik no longer accepts commissions like this.

A truly international collaboration! If you consider a similar project, dont be put off by that many of the companies are foreign. As I am living in Norway, all of them are foreign to me as well! But I have had no problems using them, and Norway is not even an EU country.

Please feel to ask if you have any questions regarding the model and its construction.


--
Remembrance of Trains Past

Edited by - Hawx on 06/08/2017 2:18:42 PM

Country: Norway | Posts: 86 Go to Top of Page

Ray Dunakin
Fireman



Posted - 06/09/2017 :  01:48:06 AM  Show Profile  Visit Ray Dunakin's Homepage  Reply with Quote
Definitely museum quality!


Country: USA | Posts: 3192 Go to Top of Page

Bill Gill
Fireman



Posted - 06/09/2017 :  06:40:18 AM  Show Profile  Reply with Quote
So much to see on such small wagons and all of it is most excellent in construction and finish.


Country: USA | Posts: 2258 Go to Top of Page

Michael Hohn
Fireman



Posted - 06/09/2017 :  11:37:53 AM  Show Profile  Visit Michael Hohn's Homepage  Reply with Quote
Beautiful model, very finely done.

Mike


_______________________________________________________________________________________________
Nobody living can ever stop me, as I go walking that freedom highway -- Woody Guthrie

Country: USA | Posts: 3854 Go to Top of Page

Philip
Fireman

Premium Member

Posted - 06/09/2017 :  11:52:46 AM  Show Profile  Reply with Quote
Glad your still doing truly amazing things!

Philip



Country: USA | Posts: 2400 Go to Top of Page

quartergauger48
Fireman

Premium Member


Posted - 06/09/2017 :  11:33:36 PM  Show Profile  Reply with Quote
Hawk, I read Remembrance of Trains Past. I am going to try just plain bleach on the wood, instead of peroxide & ammonia. And see what results I get. Very interesting topics you have on there. I enjoyed reading your findings and looking at your work'...



Ted

Country: USA | Posts: 5552 Go to Top of Page
