TRAINS1941
Engineer

Premium Member


Posted - 01/15/2016 :  5:58:03 PM  Show Profile  Reply with Quote
Wish I was on the 1st train to cross over. Just looks beautiful.

Looking forward to what other changes happen in 2016.


Jerry

"And in the end, itís not the years in your life that count. It's the life in your years." A. Lincoln

Country: USA | Posts: 11671 Go to Top of Page

Frank Palmer
Fireman



Posted - 01/15/2016 :  7:16:12 PM  Show Profile  Visit Frank Palmer's Homepage  Reply with Quote

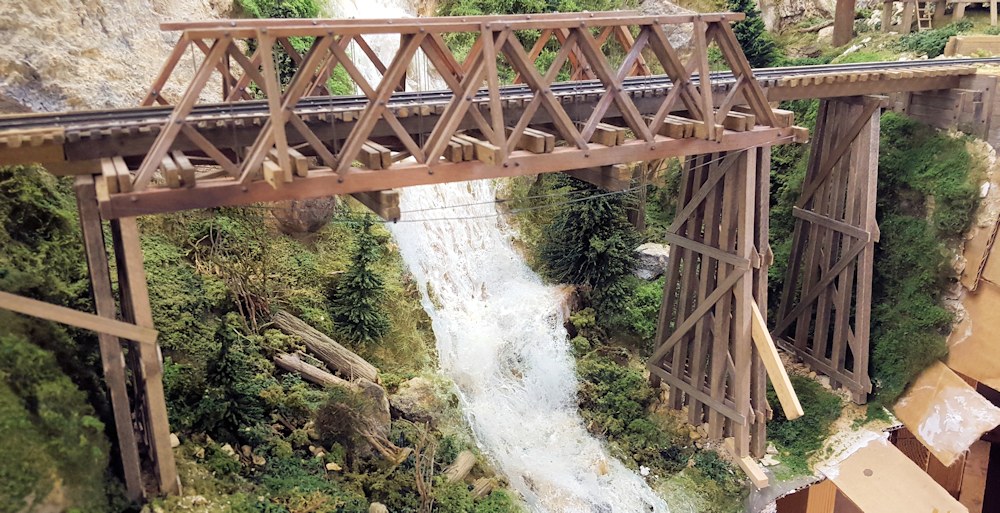

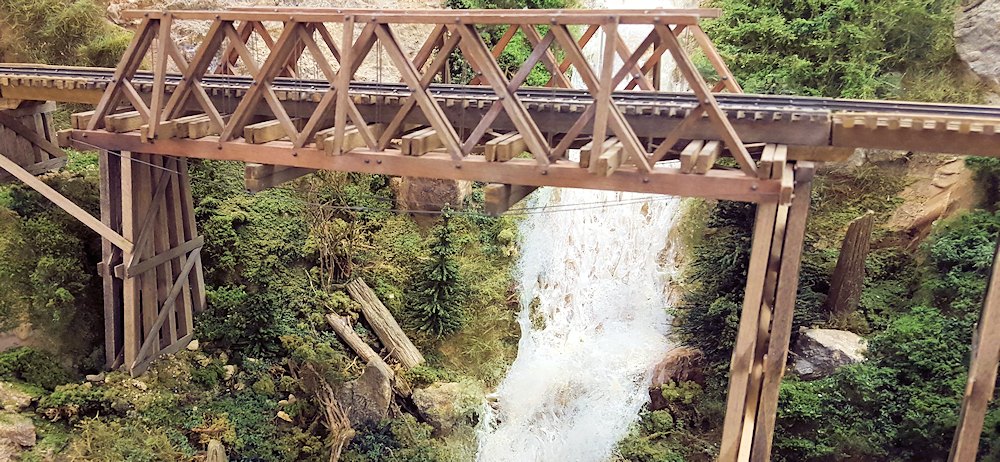

Frederic not to be a kill joy but arenít you missing a couple of bents under the ends of the bridge section?



Frank

Country: USA | Posts: 5401 Go to Top of Page

Frederic Testard
Engineer

Premium Member


Posted - 01/18/2016 :  10:32:22 AM  Show Profile  Reply with Quote
Hey, Frank, it had to happen. When I realized it, I had hoped nobody would notice this lack of strength near the center of the bridge - and even that someone would show an example, but it is quite unlikely that builders making a rather complex assembly job on the central part would leave it almost unsupported...
Anyway, I have perchance kept one jig and will thus be able to make two more supports with accurate angles. Just a few stone to unglue from the basis and it should be OK in a few days.



Country: France | Posts: 17652 Go to Top of Page

Frank Palmer
Fireman



Posted - 01/18/2016 :  7:04:08 PM  Show Profile  Visit Frank Palmer's Homepage  Reply with Quote
I wasn't trying to call you out Frederic, just pointing to a potential flaw that could lead to a very costly train wreck. You wouldn't want the safety record on the line to have a dark stain on it would you?

Frank

Country: USA | Posts: 5401 Go to Top of Page

Frederic Testard
Engineer

Premium Member


Posted - 01/22/2016 :  11:59:44 AM  Show Profile  Reply with Quote

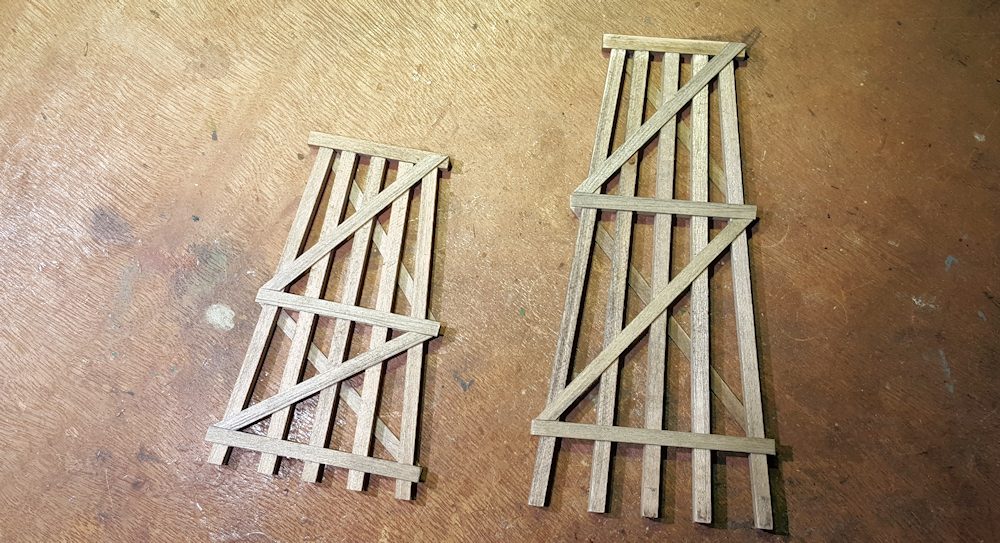

A bit of progress : two new bents assembled. Nothing extraordinary, but progress nevertheless...




Country: France | Posts: 17652 Go to Top of Page

Frank Palmer
Fireman



Posted - 01/22/2016 :  1:37:29 PM  Show Profile  Visit Frank Palmer's Homepage  Reply with Quote
You're so good.

Frank

Country: USA | Posts: 5401 Go to Top of Page

Frederic Testard
Engineer

Premium Member


Posted - 01/22/2016 :  5:16:40 PM  Show Profile  Reply with Quote
Glad you mention it, Frank.

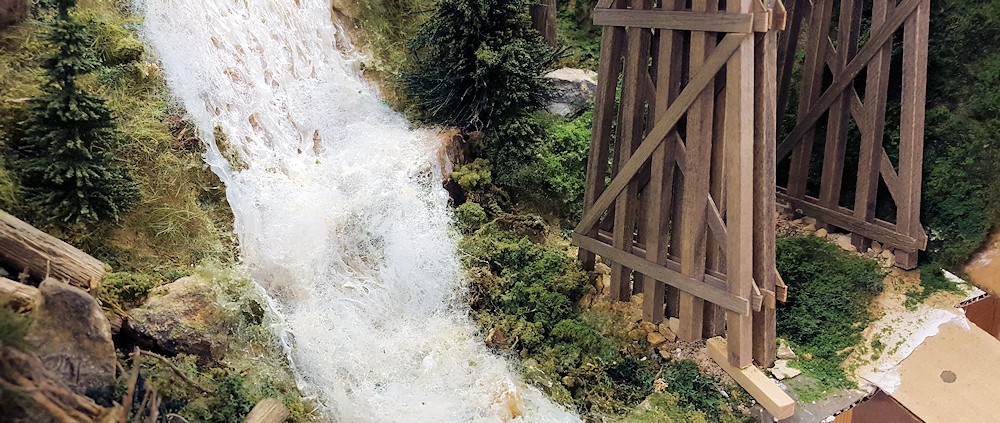

I've been able to proceed a little further and partially install one of the bents. Since it was not very well held by the glue : it was glued to the bottom of the top (ahum...) of the bridge and hanged with no support, I had to use some removable sticks to hold it in position while a foundation was added (ballast and little stones glued with the usual mix of white glue + water + dishwashing liquid). For the moment, this foundation is drying and I will remove the temporary supports tomorrow and add the second part of the foundation. The pictures show various stages of the process : the two first ones depict the bent with no support other than the removable stick (the file acts as a counterweight to create a force toward the top that pushes the bent against the bridge), the foundation added and not glued, and finally the foundation glued and some greenery added.











Country: France | Posts: 17652 Go to Top of Page

Frank Palmer
Fireman



Posted - 01/22/2016 :  6:52:27 PM  Show Profile  Visit Frank Palmer's Homepage  Reply with Quote
I'm going to have to add these photos to my bridge file.

Frank

Country: USA | Posts: 5401 Go to Top of Page

George D
Moderator

Premium Member


Posted - 01/22/2016 :  8:07:41 PM  Show Profile  Reply with Quote
The nice thing about model building, you don't have to start at the foundation and work up, you can start at the top and work down.

The double bents are going to look good.

George



Country: USA | Posts: 15237 Go to Top of Page

Frederic Testard
Engineer

Premium Member


Posted - 01/23/2016 :  2:40:13 PM  Show Profile  Reply with Quote
Thanks, Frank (I suppose - or should I say 'hope" - you didn't imply : "as an example not to follow"... )
Yes, George, truth comes from the sky...

The second bent has been installed, "foundationned" and partially sceniced...

Finish of the foundation of the first one.



Now to the second one. Positionning method somewhat different from that used on the first one.

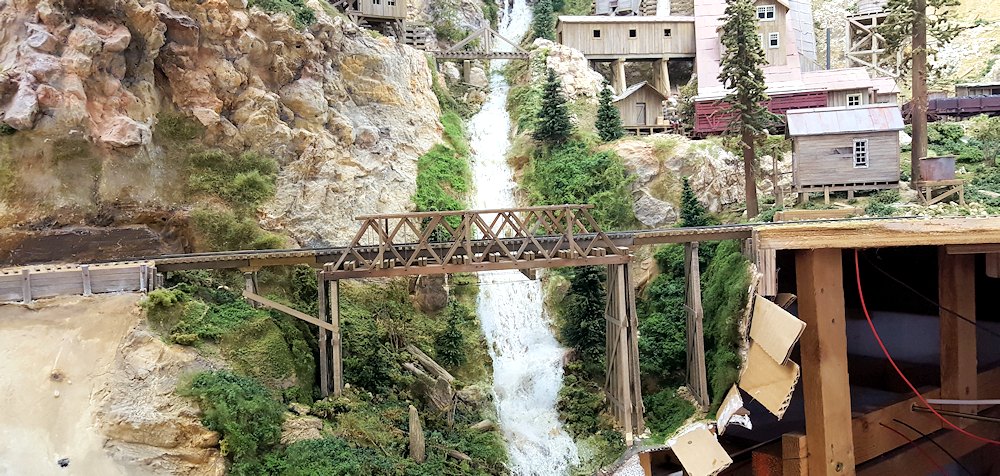

A view of the current scene.




Country: France | Posts: 17652 Go to Top of Page

TRAINS1941
Engineer

Premium Member


Posted - 01/23/2016 :  2:46:18 PM  Show Profile  Reply with Quote
Nice Frederick. And a good fix. looks great.

Jerry

"And in the end, itís not the years in your life that count. It's the life in your years." A. Lincoln

Country: USA | Posts: 11671 Go to Top of Page

Carl B
Fireman

Premium Member

Posted - 01/23/2016 :  3:23:31 PM  Show Profile  Reply with Quote
Nice save on the bents Frederic.

Mr. Palmer can be harsh, but he means well.

He's "corrected" me a few times, and I survived!



Country: USA | Posts: 3462 Go to Top of Page

Martin Welberg
Fireman



Posted - 01/23/2016 :  5:23:12 PM  Show Profile  Visit Martin Welberg's Homepage  Reply with Quote
Filed it up !!


Country: Netherlands | Posts: 6727 Go to Top of Page

Geezer
Engineer



Posted - 01/23/2016 :  6:20:10 PM  Show Profile  Reply with Quote
Awesome trestle Frederic.....
A beautiful scene with the waterfall behind.....



Country: USA | Posts: 12973 Go to Top of Page

Frank Palmer
Fireman



Posted - 01/23/2016 :  7:07:57 PM  Show Profile  Visit Frank Palmer's Homepage  Reply with Quote
quote:
Originally posted by Carl B

Mr. Palmer can be harsh, but he means well.



You should hear what the guys at the "Center" say, yikes!

Frederic, you have my unabashed approval.


Frank

Country: USA | Posts: 5401 Go to Top of Page
